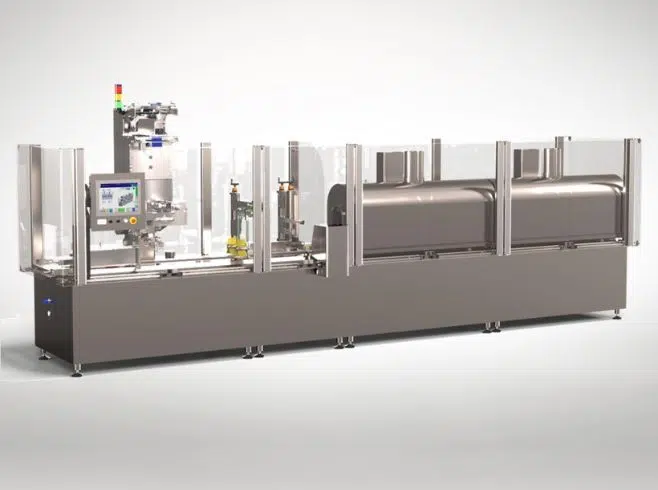

Combisteam LPPE®

FB500 -AI200

Accelerate your ecological transition, integrating your bottles PE-PP 100% recyclable

Your bottles decorated with an integral sleeve label fit into the PE-PP recycling flow
A modular machine designed for high production rates
An ergonomically designed shrink-sleeve unwind unit for the operator’s autonomy and comfort
Optimized energy consumption for carbon neutrality

Features

Innovative technology to enhance the recyclability of your PE-PP packaging

An innovative technology to contribute to the recyclability of your PE-PP bottles

A machine designed to decorate PE-PP bottles of soft drinks and liquid food, from 100ml to 2L, of all shapes, up to the most sophisticated. This equipment allows the implementation of LPPE®, a sleeve compatible with the 100% recycling stages of PE-PP.

Modules designed for high speeds in the liquid food industry.

Modularity at the service of performance

To work at high speed in wet conditions, this machine is equipped with modules to guarantee the performance and quality of your products: a drying module at the inlet to facilitate shrink-sleeve application, an orientation system for complex shapes, and a control and ejection system.

A high-capacity magazine to ensure autonomy.

An ergonomic design for easy and quick reel connections

This high-capacity unwind unit can handle high sleeving speeds and is designed to accommodate new generation films.

Located outside the machine, it offers easy access to the reels, which are positioned at hand level; the splicing table allows for quick and error-free splicing. The overall system provides autonomy and ergonomics, for operator comfort.

Energy consumption tailored to each format.

Energy management to reduce the carbon footprint of your products

This exclusive shrink technology combines several systems: the expansion chamber, the height-adjustable tunnel and the steam diffusion system are adjusted to each product to optimize energy consumption.

Options

Multi-reel shrink-sleeve unwinder unit with automatic splicing

Increase your autonomy for greater productivity

The 6-reel automatic sleeve unwinder unit increases production time with no operator intervention. This time gives you the freedom of action to carry out other tasks and improve productivity.

Camera vision module for detection and product orientation using belts

The assurance of a well-positioned shrink-sleeve label on shaped bottles

A two-step orientation system for shaped bottles. Camera detection combined with software defines the position of the bottle in relation to a mark that is placed on it. The software calculates the necessary correction rotation to obtain the proper orientation. The belts receive the information and correct the rotation of the bottle to ensure its correct positioning in relation to the direction of the sleeve application.

Drying module at the end of the shrinking tunnel

The guarantee of a dry product for the packaging at the end of the line

The drying system allows for the removal of any moisture or condensation from the pack. It guarantees a dry product at the outlet of the machine for end-of-line packaging. It meets CE and UL standards and does not exceed 80 dB in production.

Coding and traceability module

Product serialization and marking to meet food standards

This module is located in the remote shrink-sleeve unwind unit for easy access and control without disrupting production. The coding function for printing the use-by date is also used to ensure product serialization and allows for the tracking of the product throughout its life cycle in accordance with food standards. Several marking technologies are available (laser, inkjet...).

Specifications

* Non contractual information

Machine

Conveyor height

980 +/- 50 mm

Speed

500 cpm

Cutting diameter

100 mm

Steam consumption

200 Kg/h

Steam pressure

6 – 8 bars

Electrical consumption

12 kWH

Machine length

6400 mm

Packaging

Materials

PE-PP

Shapes

Cylindrical, square, complex shapes...

Product diameter

45 to 70 mm

Product height

185 – 210 mm

Sizes

20 ml – 1 l

Sleeves

Application

Full body, partial sleeve

Type of film
