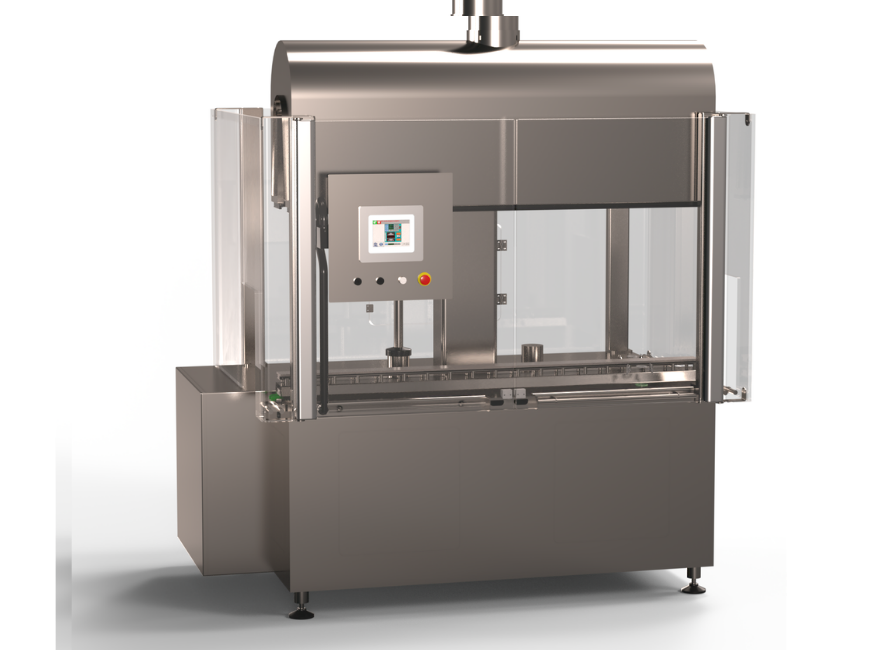

full body packaging sleeve machine

Combilab steam®

FB60

FLEXIBILITY AND MOBILITY SERVING FULL-SURFACE SLEEVE APPLICATION

  • Mobility and compact footprint to adapt to your production
  • Flexibility and fast setup for the operator
  • Secure settings for flawless finishing
  • Optimized operating costs

Characteristics

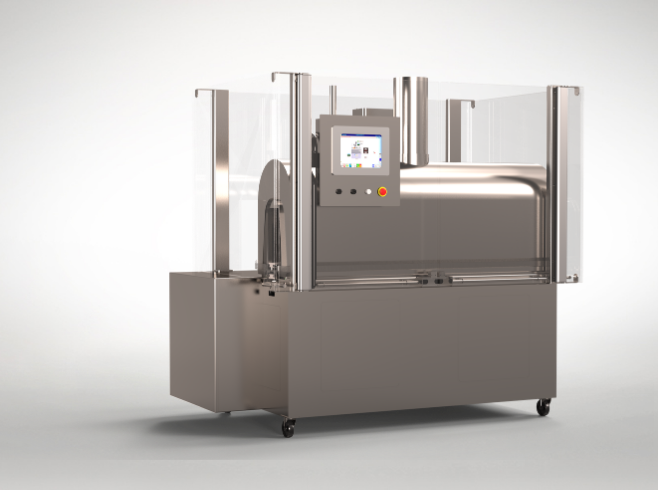

Compact and mobile Machine

Mounted on wheels for quick and easy movement

An all-in-one concept: mobility, compact design, well-positioned control panel, and integrated electrical cabinet.

Adapts to Each of Your Products for Fast Production Start-Up

A machine designed for the operator, simple to use

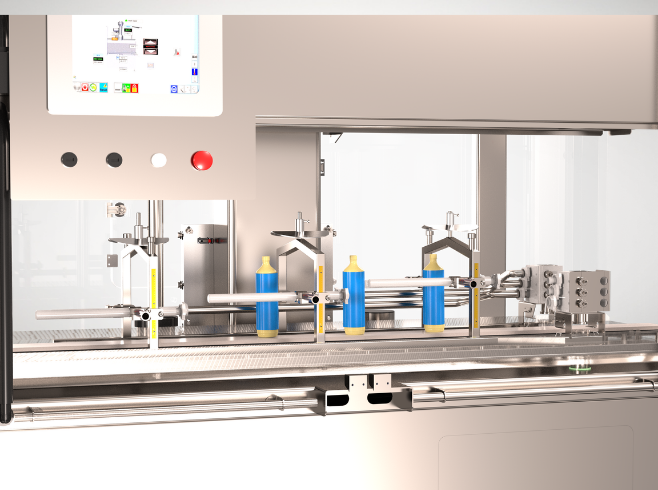

Dedicated tooling for each product format ensures operator comfort and controlled implementation, enabling quick restart in production.

Consistent Quality Control on the Production Line

Secure settings for perfect finishing control

A touchscreen interface allows the operator to manage and fine-tune settings throughout the production cycle.

Optimal Finishing at Controlled Costs

High-quality finishing combined with efficient energy management

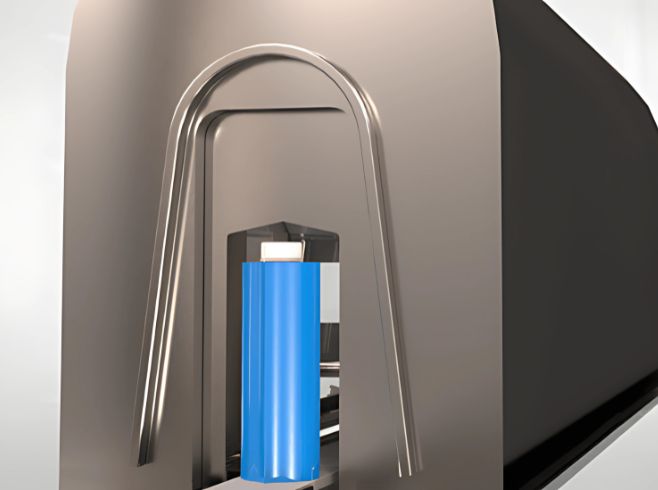

This equipment features a unique patented technology, equipped with a lifting system.

Its shrink tunnel adjusts to each format. We recycle part of the energy and minimize overall consumption.

Options

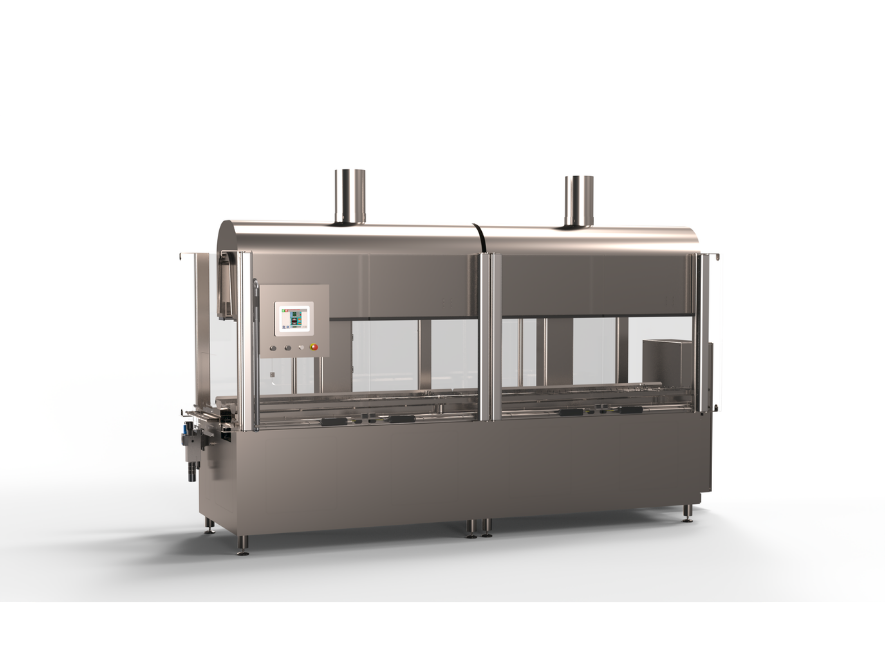

Dual tunnel

For complex shapes and higher throughput

Ethernet communication

Remote maintenance and data reporting

Tooling cart

For proximity and secure handling of your tooling

Specifications

Specifications are non-binding and subject to change and adaptation depending on the country.

Machine

Conveyor Height
980 +/- 50 mm
Speed
60 bpm
Steam Consumption
70-150 kg
Steam pressure
6-8 bars

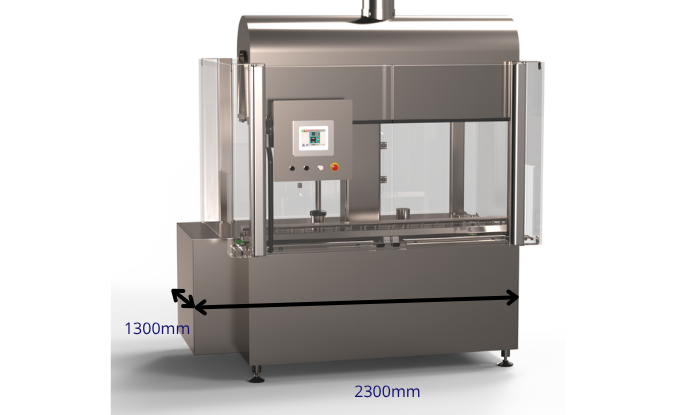

Length
2300 mm

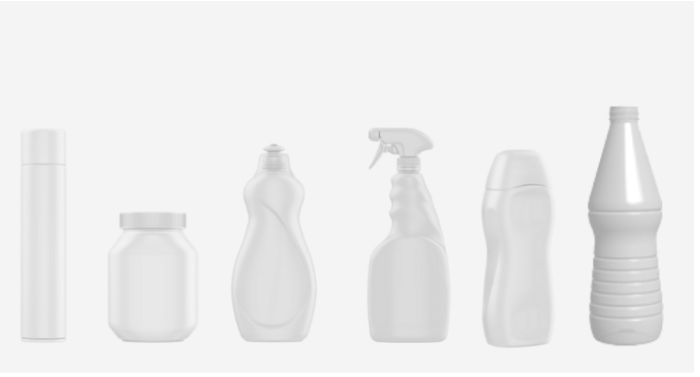

Packaging

Packaging
PEHD, PET, glass
Shapes
Multiple: cylindrical, oval, square
Capacity
from 100 ml to 2L
Product Diameter
from 100 to 210 mm
Product Height
Up to 320 mm

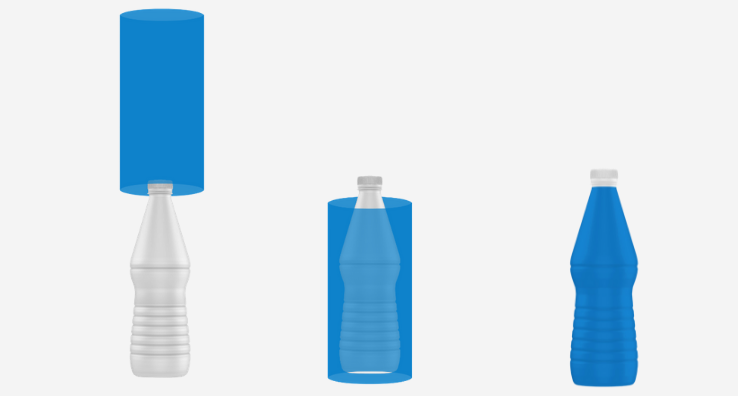

Sleeve

Covering
full body , multipack
Type of film
PET , GPET, RPET, Polyolefin
Thickness
from 30 to 60 microns
Finition
neutral, printed
